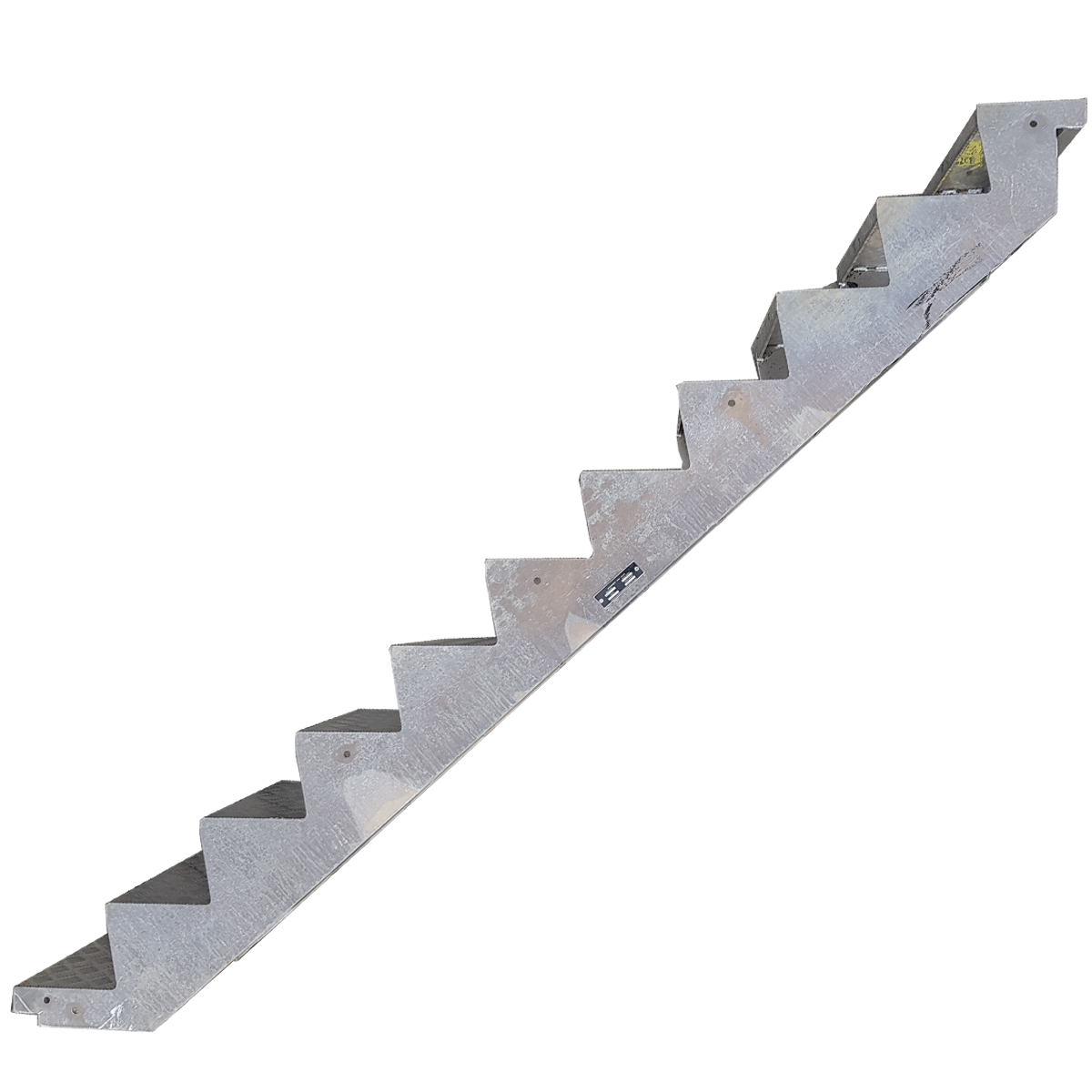

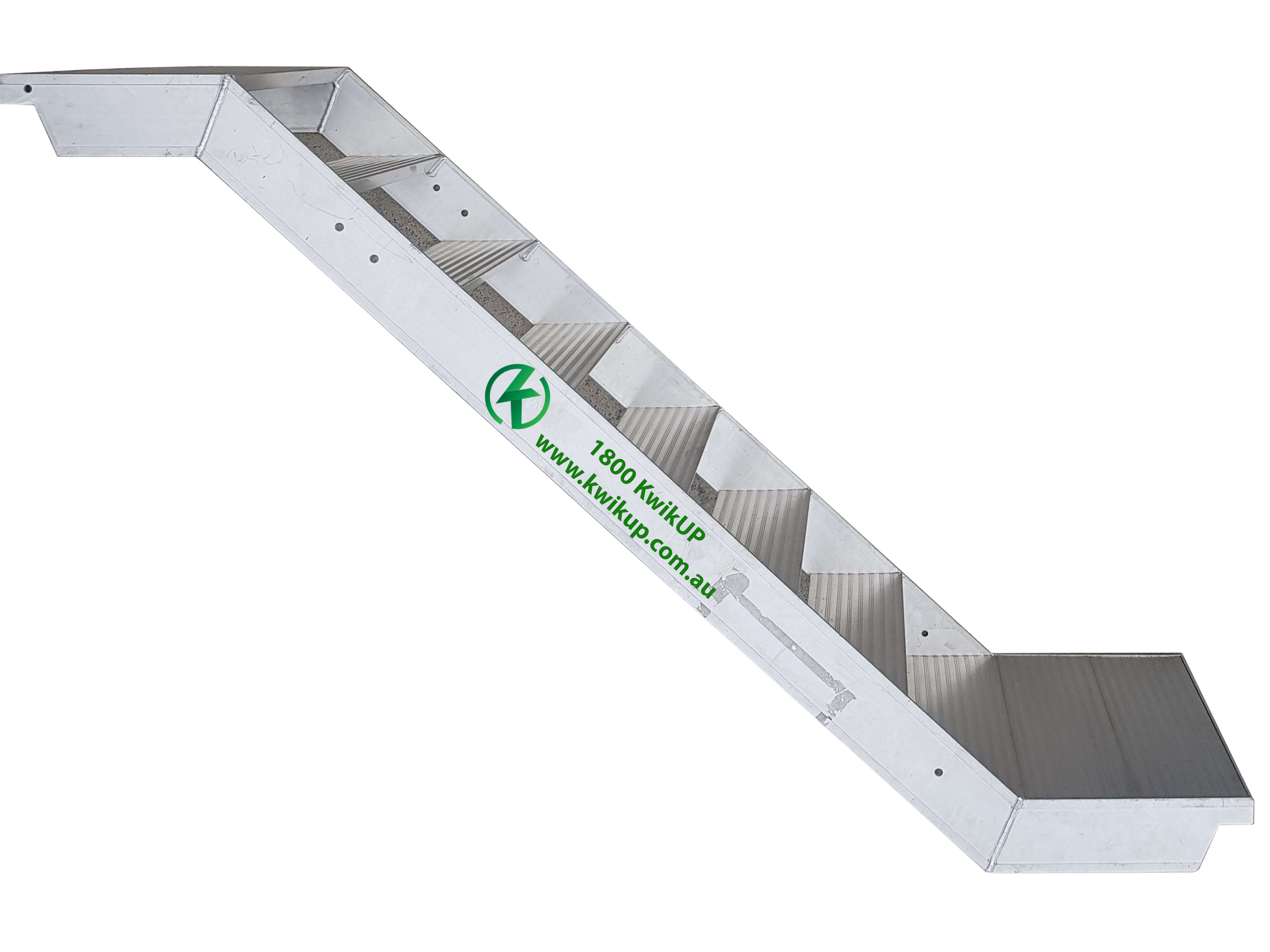

Aluminium stairs

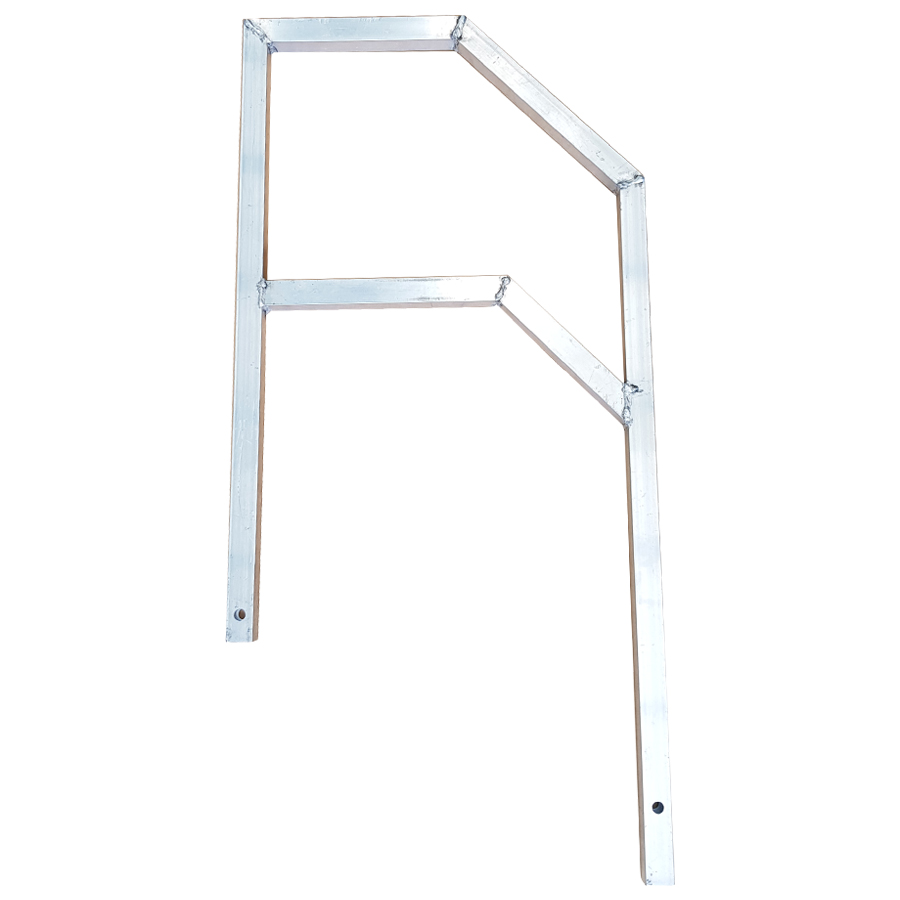

These Aluminium stairs are designed specifically for use with the steel quickstage modular scaffolding system. They are pre-fabricated and designed to fit in a 1.2m x 2.5m bay with a 1.5m rise (lift). The stairs are 564mm wide with a rise of 230mm. Two stairs will fit perfectly side by side on a 1.2m bay. To conform with NSW work cover we also offer the handrail system & top rail system.
| Size | Weight | Item Description | Quantity | ||
|---|---|---|---|---|---|

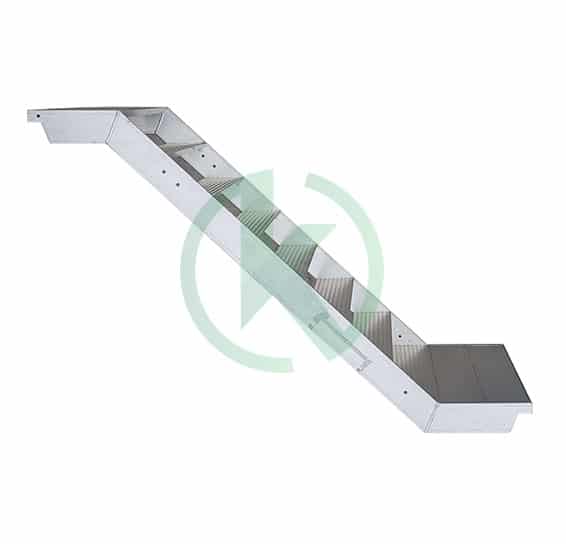

| 1.5 M | 35 kgs | 1.5 m Aluminium stair | |||
| 1.5 M | 5 kgs | Aluminium side rail | |||
| 3.0 M | 4.5 kgs | Aluminium top rail | |||
| 2.0 M | 34 kgs | 2.0 m Aluminium stair | |||
| 1.0 M | 20 kgs | 1.0 m Aluminium stair |
Related Products
Kwikstage Transoms
Transoms are made by welding two 5.00 mm angles back to back. Transoms fit into the lower ÒVÓ pressings on the standards to carry steel boards which make a safe working platform.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.5 M | 5.8 |  | | 0.5 m transom | |||
| 0.7 M | 6.1 | | | 0.7 m transom | |||
| 1.0 M | 7.2 | | | 1.0 m transom | |||
| 1.2 M | 9.8 | | | 1.2 m transom | |||
| 1.8 M | 15 | | | 1.8 m transom | |||
| 2.4 M | 21 | | | 2.4 m transom |
Kwikstage Hopup Bracket
Board Stage Brackets / hopups fit into the (V) pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1 BOARD WIDE | 2.4 | | | 1 Board stage bracket | |||
| 2 BOARD WIDE | 6.5 | | | 2 Board stage bracket | |||
| 3 BOARD WIDE | 11.4 | | | 3 Board stage bracket |
Kwikstage Ledger Transoms
Heavy duty back to back angle transoms for location of scaffold boards. These are used to where greater loads are required for pedestrain access.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 19 | | | 1.2 m ledger transom | |||
| 1.8 M | 32 | | | 1.8 m ledger transom | |||
| 2.4 M | 42 | | | 2.4 m ledger transom |
End Toe Board Bracket
End Toe Board brackets also called toe board Clips are fabricated brackets placed on the outside of a scaffold standard to allow toe boards to be installed .
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 1 | | | end toe board bracket | |||
| default variation | 1 | | | end toe board bracket |
Kwikstage Galvanized Steel planks
Manufactured from Pre Galvanised steel sheet pressed to a hollow shape 60 mm High x 230mm wide. Steel Planks are strong, durable and light in weight. They fit neatly sit on the ÒTÓ section of 2 transoms. giving a non slip surface and a working deck.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 5.2 | | 0.7 m galvanized steel Plank | ||||
| 1.2 M | 8.1 | | 1.2 m galvanized steel Plank | ||||
| 1.8 M | 11.6 | | 1.8 m galvanized steel Plank | ||||
| 2.4 M | 15 | | 2.4 m galvanized steel Plank |
