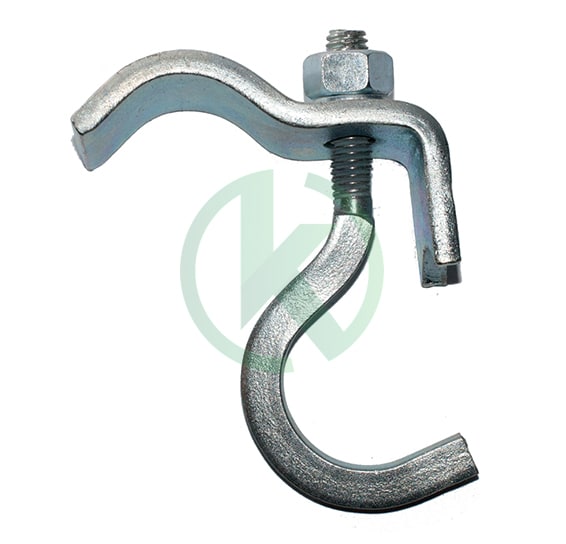

Mills Hook Coupler
The Hook and base plate is made up of mild steel. Alternative to RAC
| Size | Weight | Item Description | Quantity | ||
|---|---|---|---|---|---|
| 48.3mm | 0.6 | No Description | |||
| default variation | 0.6 | No Description |
Related Products
Scaffold U head Jack
U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 34 OD X 650 mm x 8 MM | 9 |  | U Head Jack | ||||
| default variation | 9 | | U Head Jack |
Bridging Ledger
The bridging ledger is provided to achieve a clear span of 4.8m by eliminating the centre set of standards, whilst maintaining the continuity of the scaffold deck.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 4.8 M | 26.5 | | 4.8 m Bridging Ledger | ||||
| default variation | 26.5 | | 4.8 m Bridging Ledger |
Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 3 | | | Standard Topper | |||
| 0.5 M | 3.6 | | | 0.5 m standard | |||
| 1.0 M | 6.5 | | | 1.0 m standard | |||
| 1.5 M | 9.15 | | | 1.5 m standard | |||
| 2.0 M | 12.15 | | | 2.0 m standard | |||
| 2.5 M | 14.7 | | | 2.5 m standard | |||
| 3.0 M | 17.5 | | | 3.0 m standard |
Kwikstage Ledgers
Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3 OD X 3.2 mm & 4 mm tubes. Ledgers fit into the upper ÒVÓ Pressings on the standards.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 3.9 | | | 0.7 m ledger | |||
| 1.2 M | 5 | | | 1.2 m ledger | |||
| 1.8 M | 7.6 | | | 1.8 m ledger | |||
| 2.4 M | 9.3 | | | 2.4 m ledger |
Gaurdrail Post
Used for edge protection Ð slab or balconyÕs. Bolted into concrete with 14mm Dyna Bolts. ÊCompatible with all sizes of ledgers which makes it very versatile
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 10 | | | guard rail post | |||
| default variation | 10 | | | guard rail post |
