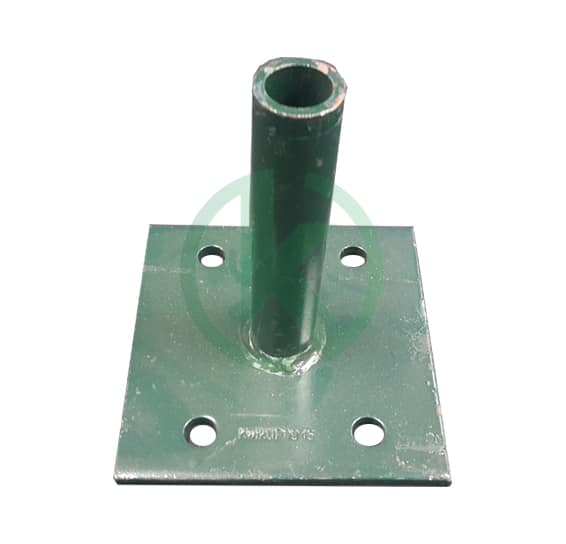

Plain Base Plate
Provides stability to the scaffold structure when place at the base and stops the tubes from slipping across the floor
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
150 mm X 150 mm | 1.8 | Plain base plate | |||||
default variation | 1.8 | Plain base plate |
Related Products
Scaffold U head Jack
U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
34 OD X 650 mm x 8 MM | 9 | U Head Jack | |||||
default variation | 9 | U Head Jack |
Kwikstage Ledgers
Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3 OD X 3.2 mm & 4 mm tubes. Ledgers fit into the upper ÒVÓ Pressings on the standards.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.7 M | 3.9 | 0.7 m ledger | |||||
1.2 M | 5 | 1.2 m ledger | |||||
1.8 M | 7.6 | 1.8 m ledger | |||||
2.4 M | 9.3 | 2.4 m ledger |
Solid base jack
Adjustable base jack enables accurate levelling of the scaffolding on uneven ground and infinite adjustment on sloping ground
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
34 OD X 650 mm x 8 MM | 7.5 | Solid base jack | |||||
default variation | 7.5 | Solid base jack |
Kwikstage Ladder Access Transoms
Transom component used for insertion into scaffold bay. Allows installation of a ladder opening within the scaffold deck.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.7 M | 5.3 | 0.7 m Ladder Access transom | |||||
1.2 M | 7.5 | 1.2 m ladder access transom | |||||
1.8 M | 13.2 | 1.8 m ladder access transom | |||||
2.4 M | 16.5 | 2.4 m ladder access transom |
Kwikstage Transoms
Transoms are made by welding two 5.00 mm angles back to back. Transoms fit into the lower ÒVÓ pressings on the standards to carry steel boards which make a safe working platform.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.5 M | 5.8 | 0.5 m transom | |||||
0.7 M | 6.1 | 0.7 m transom | |||||
1.0 M | 7.2 | 1.0 m transom | |||||
1.2 M | 9.8 | 1.2 m transom | |||||
1.8 M | 15 | 1.8 m transom | |||||
2.4 M | 21 | 2.4 m transom |
