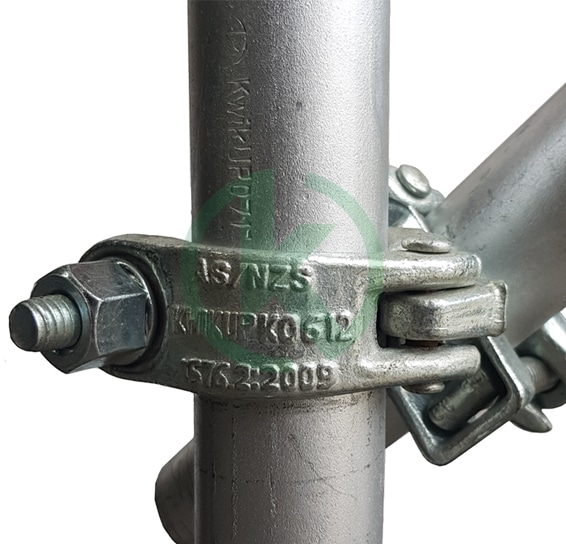

Swivel Coupler
A strong drop forged coupler like the double coupler but more flexible as it connects scaffold tubes at any angle required.
| Size | Weight | Item Description | Quantity | ||
|---|---|---|---|---|---|
| 48.3 mm | 1.1 | No Description |
Related Products
Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 3 |  | | Standard Topper | |||
| 0.5 M | 3.6 | | | 0.5 m standard | |||
| 1.0 M | 6.5 | | | 1.0 m standard | |||
| 1.5 M | 9.15 | | | 1.5 m standard | |||
| 2.0 M | 12.15 | | | 2.0 m standard | |||
| 2.5 M | 14.7 | | | 2.5 m standard | |||
| 3.0 M | 17.5 | | | 3.0 m standard |
Wall Tie Bracket
Wall tie brackets one half coupler and two half couplers suitable to hold 48.30 OD tube are used to secure the scaffold to a structre.
| Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|
| | Wall tie bracket 1 coupler | |||
| | Wall tie bracket 2 coupler |
Kwikstage Galvanized Steel planks
Manufactured from Pre Galvanised steel sheet pressed to a hollow shape 60 mm High x 230mm wide. Steel Planks are strong, durable and light in weight. They fit neatly sit on the ÒTÓ section of 2 transoms. giving a non slip surface and a working deck.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 5.2 | | 0.7 m galvanized steel Plank | ||||
| 1.2 M | 8.1 | | 1.2 m galvanized steel Plank | ||||
| 1.8 M | 11.6 | | 1.8 m galvanized steel Plank | ||||
| 2.4 M | 15 | | 2.4 m galvanized steel Plank |
Kwikstage Ledgers
Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3 OD X 3.2 mm & 4 mm tubes. Ledgers fit into the upper ÒVÓ Pressings on the standards.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 3.9 | | | 0.7 m ledger | |||
| 1.2 M | 5 | | | 1.2 m ledger | |||
| 1.8 M | 7.6 | | | 1.8 m ledger | |||
| 2.4 M | 9.3 | | | 2.4 m ledger |
Kwikstage Hopup bracket – Straight arm
Board Stage Brackets / hopups fit into the ÒVÓ pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 2 BOARD WIDE | 6.25 | | | 2 board hopup straight arm | |||
| 3 BOARD WIDE | 11.25 | | | 3 board hopup straight arm |
