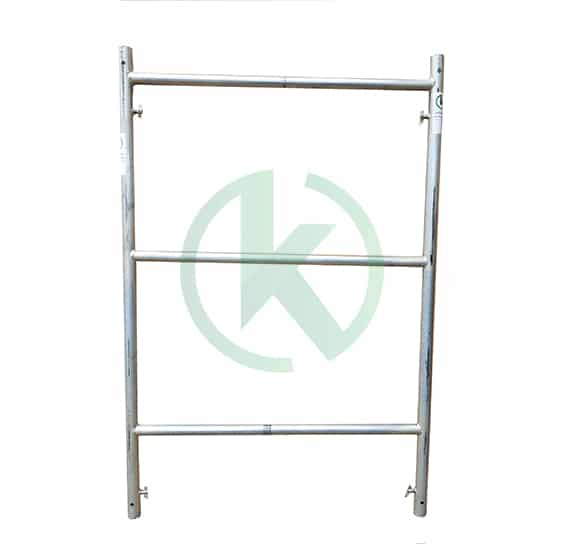

1.8 m H Frame

Size	Weight	Item Description	Quantity	Select All
1800 High X 1200 Wide, Vertical Tube 48 X 3.5, ledger Tube 42 X 2.2	21.51	1.8HFrame		✓
default variation	21.51	1.8HFrame		✓

SKU: 999-144 Category: Uncategorized

U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD

Size	Weight	Painted	Galvanised	Item Description	Quantity	Select All
34 OD X 650 mm x 8 MM	9			U Head Jack		✓
default variation	9			U Head Jack		✓

Transom component used for insertion into scaffold bay. Allows installation of a ladder opening within the scaffold deck.

Size	Weight	Item Description	Select All
0.7 M	5.3	0.7 m Ladder Access transom	✓
1.2 M	7.5	1.2 m ladder access transom	✓
1.8 M	13.2	1.8 m ladder access transom	✓
2.4 M	16.5	2.4 m ladder access transom	✓

Size	Weight	Item Description	Quantity	Select All
1219 mm x 1829 mm, Vertical tube : 60 OD X 3.5 mm, Ledger tube: 42 OD x 2.2 mm.	26.71	1.8mFormwork		✓
default variation	26.71	1.8mFormwork		✓

The steel in-fill spans between the transoms giving a non slip surface with a is hot dip galvanized finish.

Size	Weight	Item Description	Select All
1.2 M	4.05	1.2 m galvanized steel infill	✓
1.8 M	6	1.8 m galvanized steel infill	✓
2.4 M	7.5	2.4 m galvanized steel infill	✓

Size	Weight	Item Description	Quantity	Select All
1219 mm x 2134 mm, Vertical tube : 60 OD X 3.5 mm, Ledger tube: 42 OD x 2.2 mm.	29.88	2.1 mFormwork		✓
default variation	29.88	2.1 mFormwork		✓
