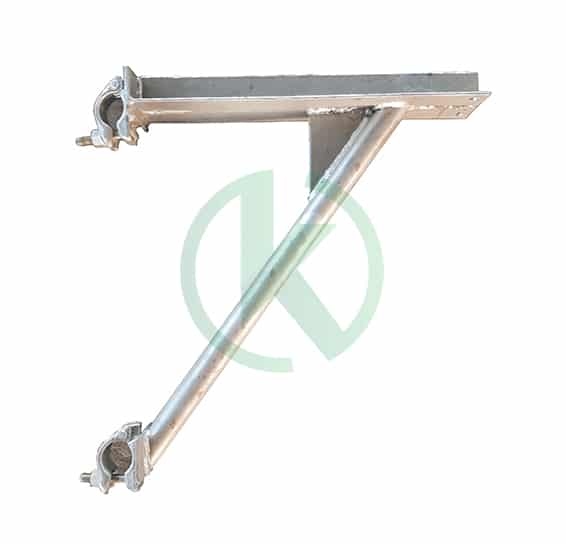

Kwikstage Hopup bracket – Couplers
custom made with couplers for more flexibility
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
2 BOARD WIDE | 8.1 | 2 Board Hopup with Couplers | |||||
3 BOARD WIDE | 12 | 3 Board Hopup with Couplers |
Related Products
Kwikstage Hopup – Spigot
Hopups with spigots give more flexibility by fitting standards in the spigot and run handrails on the v press
Size | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|
3 BOARD WIDE | 3 Board Hopup with Spigot | |||||
2 BOARD WIDE | 2 Board Hopup with Spigot |
Kwikstage Tie Bars
Tie bars have pins at each ends which fit in holes of 2 and 3 board stage brackets (hopups) to prevent the brackets from spreading and the planks from becoming dislodged
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.7 M | 2.5 | 0.7 m tie bar | |||||
1.2 M | 3.6 | 1.2 m tie bar | |||||
1.8 M | 5.2 | 1.8 m tie bar | |||||
2.4 M | 7 | 2.4 m tie bar |
Wall Tie Bracket
Wall tie brackets one half coupler and two half couplers suitable to hold 48.30 OD tube are used to secure the scaffold to a structre.
Size | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|
0.3 M | Wall tie bracket 1 coupler | |||||
0.3 M | Wall tie bracket 2 coupler |
Kwikstage Transoms
Transoms are made by welding two 5.00 mm angles back to back. Transoms fit into the lower ÒVÓ pressings on the standards to carry steel boards which make a safe working platform.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.5 M | 5.8 | 0.5 m transom | |||||
0.7 M | 6.1 | 0.7 m transom | |||||
1.0 M | 7.2 | 1.0 m transom | |||||
1.2 M | 9.8 | 1.2 m transom | |||||
1.8 M | 15 | 1.8 m transom | |||||
2.4 M | 21 | 2.4 m transom |
Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.3 M | 3 | Standard Topper | |||||
0.5 M | 3.6 | 0.5 m standard | |||||
1.0 M | 6.5 | 1.0 m standard | |||||
1.5 M | 9.15 | 1.5 m standard | |||||
2.0 M | 12.15 | 2.0 m standard | |||||
2.5 M | 14.7 | 2.5 m standard | |||||
3.0 M | 17.5 | 3.0 m standard |
