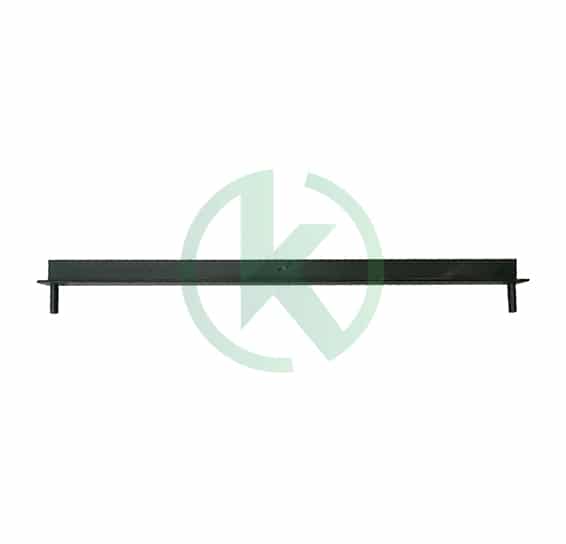

Kwikstage Tie Bars
Tie bars have pins at each ends which fit in holes of 2 and 3 board stage brackets (hopups) to prevent the brackets from spreading and the planks from becoming dislodged
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 2.5 |  | | 0.7 m tie bar | |||
| 1.2 M | 3.6 | | | 1.2 m tie bar | |||
| 1.8 M | 5.2 | | | 1.8 m tie bar | |||
| 2.4 M | 7 | | | 2.4 m tie bar |
Related Products
Kwikstage Ledgers
Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3 OD X 3.2 mm & 4 mm tubes. Ledgers fit into the upper ÒVÓ Pressings on the standards.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 3.9 | | | 0.7 m ledger | |||
| 1.2 M | 5 | | | 1.2 m ledger | |||
| 1.8 M | 7.6 | | | 1.8 m ledger | |||
| 2.4 M | 9.3 | | | 2.4 m ledger |
Kwikstage Galvanized Steel Infills
The steel in-fill spans between the transoms giving a non slip surface with a is hot dip galvanized finish.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 4.05 | | 1.2 m galvanized steel infill | ||||
| 1.8 M | 6 | | 1.8 m galvanized steel infill | ||||
| 2.4 M | 7.5 | | 2.4 m galvanized steel infill |
Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 3 | | | Standard Topper | |||
| 0.5 M | 3.6 | | | 0.5 m standard | |||
| 1.0 M | 6.5 | | | 1.0 m standard | |||
| 1.5 M | 9.15 | | | 1.5 m standard | |||
| 2.0 M | 12.15 | | | 2.0 m standard | |||
| 2.5 M | 14.7 | | | 2.5 m standard | |||
| 3.0 M | 17.5 | | | 3.0 m standard |
Scaffold U head Jack
U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 34 OD X 650 mm x 8 MM | 9 | | U Head Jack | ||||
| default variation | 9 | | U Head Jack |
Kwikstage Hopup bracket – Straight arm
Board Stage Brackets / hopups fit into the ÒVÓ pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 2 BOARD WIDE | 6.25 | | | 2 board hopup straight arm | |||
| 3 BOARD WIDE | 11.25 | | | 3 board hopup straight arm |
