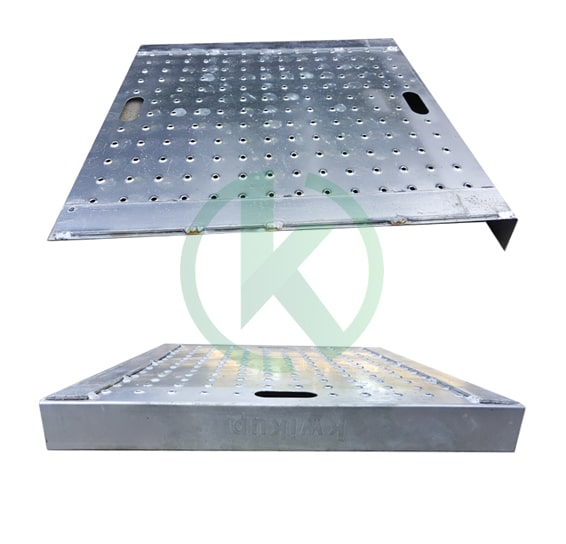

Lap Panels
These are an alternative for the LVL Scaffold planks. Steel panels have a folded returned to lock in between steel boards. Lap plates / panels fills the gaps minimising trip hazard and deck weight variances.
Size | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|
500 MM | Galvanized Lap panels | |||||
700 MM | Galvanized Lap panels |
Related Products
Kwikstage Hopup bracket – Straight arm
Board Stage Brackets / hopups fit into the ÒVÓ pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
2 BOARD WIDE | 6.25 | 2 board hopup straight arm | |||||
3 BOARD WIDE | 11.25 | 3 board hopup straight arm |
Kwikstage Hopup – Spigot
Hopups with spigots give more flexibility by fitting standards in the spigot and run handrails on the v press
Size | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|
3 BOARD WIDE | 3 Board Hopup with Spigot | |||||
2 BOARD WIDE | 2 Board Hopup with Spigot |
Kwikstage Galvanized Steel Infills
The steel in-fill spans between the transoms giving a non slip surface with a is hot dip galvanized finish.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
1.2 M | 4.05 | 1.2 m galvanized steel infill | |||||
1.8 M | 6 | 1.8 m galvanized steel infill | |||||
2.4 M | 7.5 | 2.4 m galvanized steel infill |
Kwikstage Diagonal Braces
Diagonal Braces provides strength and stability to the scaffold. They fit diagonally across the scaffold bay. They can be used for handrail to strecther stairs.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
1.7 M | 8.4 | 1.7 m brace | |||||
2.1 M | 8.6 | 2.1 m brace | |||||
2.7 M | 11.5 | 2.7 m brace | |||||
3.2 M | 13.4 | 3.2 m brace | |||||
3.6 M | 14.7 | 3.6 m brace |

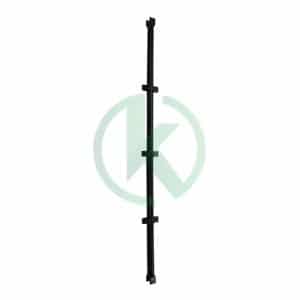

Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.3 M | 3 | Standard Topper | |||||
0.5 M | 3.6 | 0.5 m standard | |||||
1.0 M | 6.5 | 1.0 m standard | |||||
1.5 M | 9.15 | 1.5 m standard | |||||
2.0 M | 12.15 | 2.0 m standard | |||||
2.5 M | 14.7 | 2.5 m standard | |||||
3.0 M | 17.5 | 3.0 m standard |
