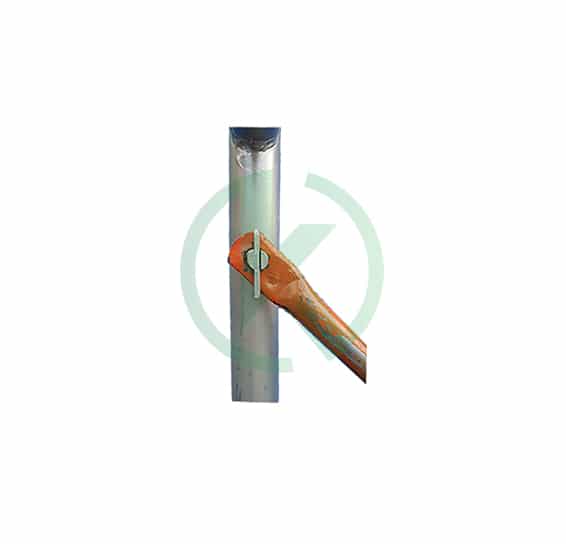

1.7 m H Frame Brace

Size	Weight	Item Description	Quantity	Select All
25.4 X 2.X 1776 mm　Galv Tube	4.2	1.7 m H Frame Brace		✓
default variation	4.2	1.7 m H Frame Brace		✓

SKU: 999-150 Category: Uncategorized

U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD

Size	Weight	Painted	Galvanised	Item Description	Quantity	Select All
34 OD X 650 mm x 8 MM	9			U Head Jack		✓
default variation	9			U Head Jack		✓

Transom component used for insertion into scaffold bay. Allows installation of a ladder opening within the scaffold deck.

Size	Weight	Item Description	Select All
0.7 M	5.3	0.7 m Ladder Access transom	✓
1.2 M	7.5	1.2 m ladder access transom	✓
1.8 M	13.2	1.8 m ladder access transom	✓
2.4 M	16.5	2.4 m ladder access transom	✓

Size	Weight	Item Description	Quantity	Select All
1219 mm x 1829 mm, Vertical tube : 60 OD X 3.5 mm, Ledger tube: 42 OD x 2.2 mm.	26.71	1.8mFormwork		✓
default variation	26.71	1.8mFormwork		✓

Provides stability to the scaffold structure when place at the base and stops the tubes from slipping across the floor

Size	Weight	Painted	Galvanised	Item Description	Quantity	Select All
150 mm X 150 mm	1.8			Plain base plate		✓
default variation	1.8			Plain base plate		✓

The steel in-fill spans between the transoms giving a non slip surface with a is hot dip galvanized finish.

Size	Weight	Item Description	Select All
1.2 M	4.05	1.2 m galvanized steel infill	✓
1.8 M	6	1.8 m galvanized steel infill	✓
2.4 M	7.5	2.4 m galvanized steel infill	✓
