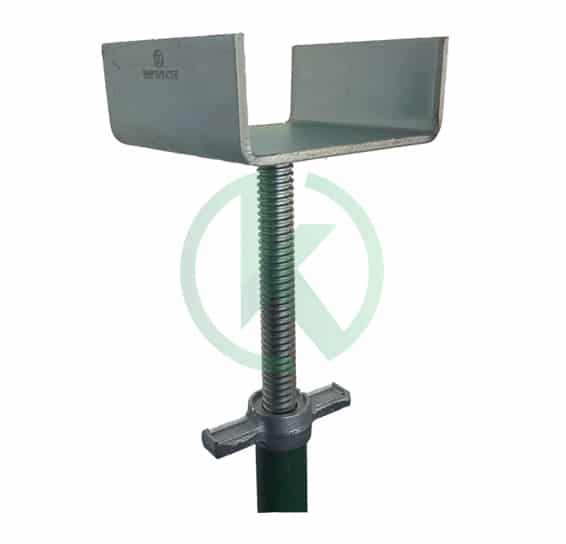

Scaffold U head Jack

Toe baord brackets also known as toe board clips are Clamped to the standard with a captive wedge to hold the batten toe board vertically in place.

Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top

Soleboards are hardwood timber planks used under Scaffold base jacks to provide greater load bearing capacity.ÊFor uneven ground levels you can use the adjustbale base jacks

Board Stage Brackets / hopups fit into the ÒVÓ pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.

Transoms are made by welding two 5.00 mm angles back to back. Transoms fit into the lower ÒVÓ pressings on the standards to carry steel boards which make a safe working platform.
