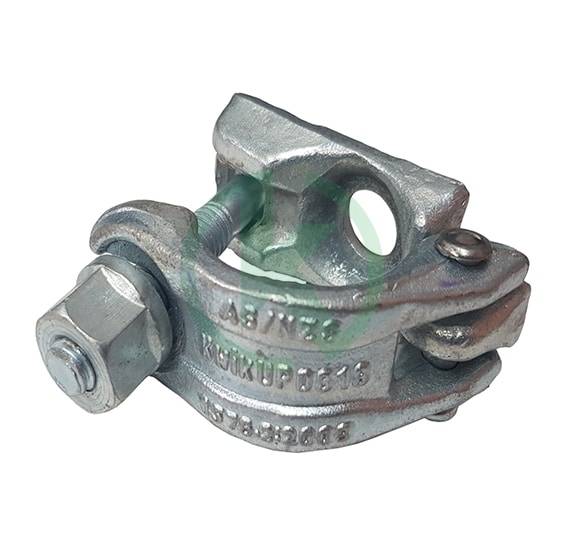

Half coupler
Made to fit on Scaffold tube, can be used to manufacture any special components to be used on Scaffolding.
Size | Weight | Item Description | Quantity | ||
---|---|---|---|---|---|
48.3mm | 0.7 | No Description | |||
default variation | 0.7 | No Description |
Related Products
End Toe Board Bracket
End Toe Board brackets also called toe board Clips are fabricated brackets placed on the outside of a scaffold standard to allow toe boards to be installed .
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.3 M | 1 | end toe board bracket | |||||
default variation | 1 | end toe board bracket |
Kwikstage Ledger Transoms
Heavy duty back to back angle transoms for location of scaffold boards. These are used to where greater loads are required for pedestrain access.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
1.2 M | 19 | 1.2 m ledger transom | |||||
1.8 M | 32 | 1.8 m ledger transom | |||||
2.4 M | 42 | 2.4 m ledger transom |
Kwikstage Diagonal Braces
Diagonal Braces provides strength and stability to the scaffold. They fit diagonally across the scaffold bay. They can be used for handrail to strecther stairs.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
1.7 M | 8.4 | 1.7 m brace | |||||
2.1 M | 8.6 | 2.1 m brace | |||||
2.7 M | 11.5 | 2.7 m brace | |||||
3.2 M | 13.4 | 3.2 m brace | |||||
3.6 M | 14.7 | 3.6 m brace |
Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.3 M | 3 | Standard Topper | |||||
0.5 M | 3.6 | 0.5 m standard | |||||
1.0 M | 6.5 | 1.0 m standard | |||||
1.5 M | 9.15 | 1.5 m standard | |||||
2.0 M | 12.15 | 2.0 m standard | |||||
2.5 M | 14.7 | 2.5 m standard | |||||
3.0 M | 17.5 | 3.0 m standard |
Kwikstage Galvanized Steel planks
Manufactured from Pre Galvanised steel sheet pressed to a hollow shape 60 mm High x 230mm wide. Steel Planks are strong, durable and light in weight. They fit neatly sit on the ÒTÓ section of 2 transoms. giving a non slip surface and a working deck.
Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
---|---|---|---|---|---|---|---|
0.7 M | 5.2 | 0.7 m galvanized steel Plank | |||||
1.2 M | 8.1 | 1.2 m galvanized steel Plank | |||||
1.8 M | 11.6 | 1.8 m galvanized steel Plank | |||||
2.4 M | 15 | 2.4 m galvanized steel Plank |
