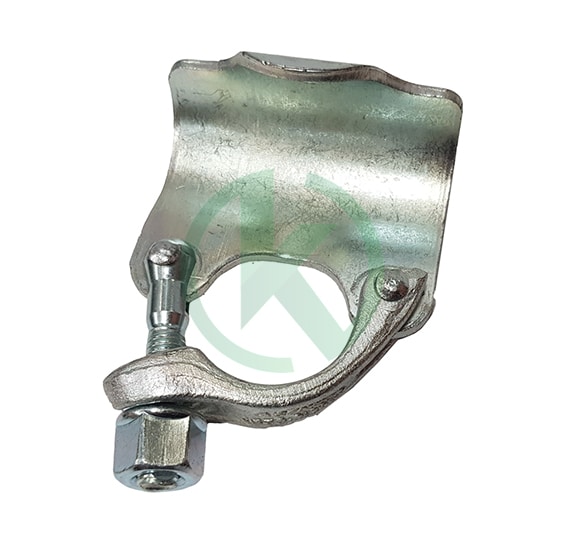

Putlog single coupler
Connects putlog or transom tubes to ledger tubes for the support of scaffold boards. The one-piece body has been carefully designed and press-formed to provide the maximum resistance.
Size | Weight | Item Description | Quantity | ||
---|---|---|---|---|---|
48.3 mm | 0.77 | No Description | |||
default variation | 0.77 | No Description |
