Sole boards

Soleboards are hardwood timber planks used under Scaffold base jacks to provide greater load bearing capacity.ÊFor uneven ground levels you can use the adjustbale base jacks

Size Weight Painted Galvanised Item Description Quantity
0.5 M X 230 MM4.3yes0.5 m sole board
spinner
default variation4.3yes0.5 m sole board
spinner

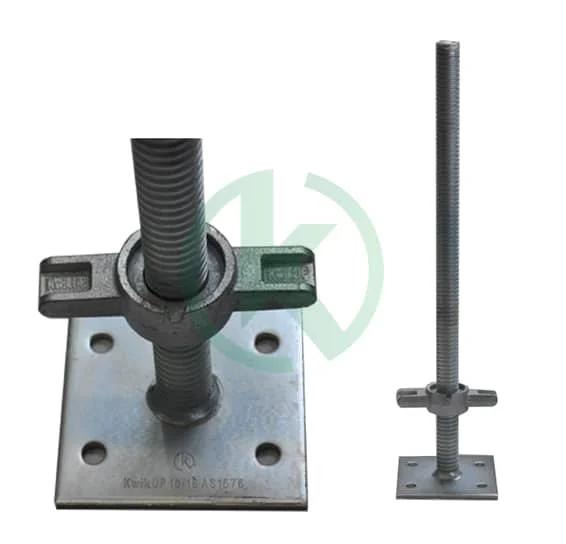

Solid base jack

Adjustable base jack enables accurate levelling of the scaffolding on uneven ground and infinite adjustment on sloping ground

Size Weight Painted Galvanised Item Description Quantity
34 OD X 650 mm x 8 MM7.5yesSolid base jack
spinner
default variation7.5yesSolid base jack
spinner

Swivel base jack

Swivel Jack provides stability for uneven surfaces. The jacks has 180 degree rotation for extra flexibility. Made from heavy duty steel and galvanized to last longer.

Size Weight Painted Galvanised Item Description Quantity
34 OD X 650 mm x 8 MM7yesswivel solid base jack
spinner
default variation7yesswivel solid base jack
spinner

Scaffold U head Jack

U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD

Size Weight Painted Galvanised Item Description Quantity
34 OD X 650 mm x 8 MM9yesU Head Jack
spinner
default variation9yesU Head Jack
spinner

Kwikstage Standards

Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top

Size Weight Painted Galvanised Item Description Quantity
0.3 M3yesyesStandard Topper
spinner
0.5 M3.6yesyes0.5 m standard
spinner
1.0 M6.5yesyes1.0 m standard
spinner
1.5 M9.15yesyes1.5 m standard
spinner
2.0 M12.15yesyes2.0 m standard
spinner
2.5 M14.7yesyes2.5 m standard
spinner
3.0 M17.5yesyes3.0 m standard
spinner

Kwikstage Ledgers

Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3 OD X 3.2 mm & 4 mm tubes. Ledgers fit into the upper ÒVÓ Pressings on the standards.

Size Weight Painted Galvanised Item Description Quantity
0.7 M3.9yesyes0.7 m ledger
spinner
1.2 M5yesyes1.2 m ledger
spinner
1.8 M7.6yesyes1.8 m ledger
spinner
2.4 M9.3yesyes2.4 m ledger
spinner

Kwikstage Transoms

Transoms are made by welding two 5.00 mm angles back to back. Transoms fit into the lower ÒVÓ pressings on the standards to carry steel boards which make a safe working platform.

Size Weight Painted Galvanised Item Description Quantity
0.5 M5.8yesyes0.5 m transom
spinner
0.7 M6.1yesyes0.7 m transom
spinner
1.0 M7.2yesyes1.0 m transom
spinner
1.2 M9.8yesyes1.2 m transom
spinner
1.8 M15yesyes1.8 m transom
spinner
2.4 M21yesyes2.4 m transom
spinner

Kwikstage Ladder Access Transoms

Transom component used for insertion into scaffold bay. Allows installation of a ladder opening within the scaffold deck.

Size Weight Painted Galvanised Item Description Quantity
0.7 M5.3yesyes0.7 m Ladder Access transom
spinner
1.2 M7.5yesyes1.2 m ladder access transom
spinner
1.8 M13.2yesyes1.8 m ladder access transom
spinner
2.4 M16.5yesyes2.4 m ladder access transom
spinner

Kwikstage Ledger Transoms

Heavy duty back to back angle transoms for location of scaffold boards. These are used to where greater loads are required for pedestrain access.

Size Weight Painted Galvanised Item Description Quantity
1.2 M19yesyes1.2 m ledger transom
spinner
1.8 M32yesyes1.8 m ledger transom
spinner
2.4 M42yesyes2.4 m ledger transom
spinner

Kwikstage Diagonal Braces

Diagonal Braces provides strength and stability to the scaffold. They fit diagonally across the scaffold bay. They can be used for handrail to strecther stairs.

Size Weight Painted Galvanised Item Description Quantity
1.7 M8.4yesyes1.7 m brace
spinner
2.1 M8.6yesyes2.1 m brace
spinner
2.7 M11.5yesyes2.7 m brace
spinner
3.2 M13.4yesyes3.2 m brace
spinner
3.6 M14.7yesyes3.6 m brace
spinner

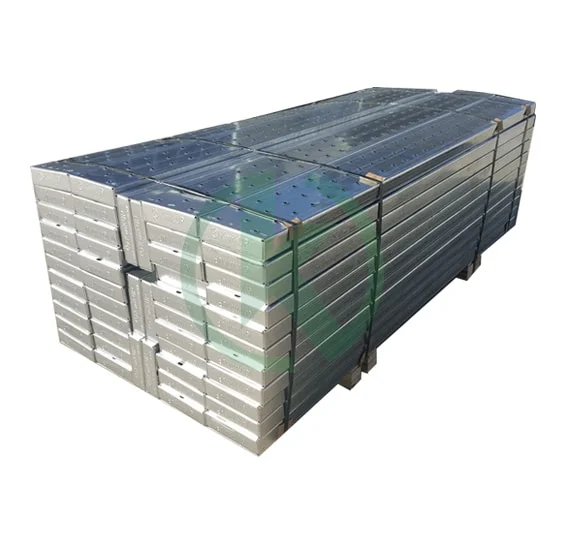

Kwikstage Galvanized Steel planks

Manufactured from Pre Galvanised steel sheet pressed to a hollow shape 60 mm High x 230mm wide. Steel Planks are strong, durable and light in weight. They fit neatly sit on the ÒTÓ section of 2 transoms. giving a non slip surface and a working deck.

Size Weight Painted Galvanised Item Description Quantity
0.7 M5.2yes0.7 m galvanized steel Plank
spinner
1.2 M8.1yes1.2 m galvanized steel Plank
spinner
1.8 M11.6yes1.8 m galvanized steel Plank
spinner
2.4 M15yes2.4 m galvanized steel Plank
spinner

Kwikstage Galvanized Steel Infills

The steel in-fill spans between the transoms giving a non slip surface with a is hot dip galvanized finish.

Size Weight Painted Galvanised Item Description Quantity
1.2 M4.05yes1.2 m galvanized steel infill
spinner
1.8 M6yes1.8 m galvanized steel infill
spinner
2.4 M7.5yes2.4 m galvanized steel infill
spinner
