Scaffold U head Jack
U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 34 OD X 650 mm x 8 MM | 9 |  | U Head Jack | ||||
| default variation | 9 | | U Head Jack |
Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 3 | | | Standard Topper | |||
| 0.5 M | 3.6 | | | 0.5 m standard | |||
| 1.0 M | 6.5 | | | 1.0 m standard | |||
| 1.5 M | 9.15 | | | 1.5 m standard | |||
| 2.0 M | 12.15 | | | 2.0 m standard | |||
| 2.5 M | 14.7 | | | 2.5 m standard | |||
| 3.0 M | 17.5 | | | 3.0 m standard |
Kwikstage Ledgers
Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3 OD X 3.2 mm & 4 mm tubes. Ledgers fit into the upper ÒVÓ Pressings on the standards.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 3.9 | | | 0.7 m ledger | |||
| 1.2 M | 5 | | | 1.2 m ledger | |||
| 1.8 M | 7.6 | | | 1.8 m ledger | |||
| 2.4 M | 9.3 | | | 2.4 m ledger |

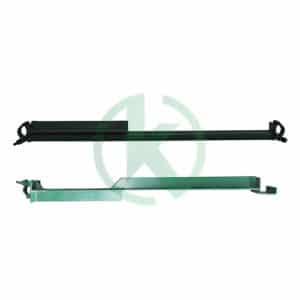

Kwikstage Ladder Access Transoms
Transom component used for insertion into scaffold bay. Allows installation of a ladder opening within the scaffold deck.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 5.3 | | | 0.7 m Ladder Access transom | |||
| 1.2 M | 7.5 | | | 1.2 m ladder access transom | |||
| 1.8 M | 13.2 | | | 1.8 m ladder access transom | |||
| 2.4 M | 16.5 | | | 2.4 m ladder access transom |
Kwikstage Diagonal Braces
Diagonal Braces provides strength and stability to the scaffold. They fit diagonally across the scaffold bay. They can be used for handrail to strecther stairs.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.7 M | 8.4 | | | 1.7 m brace | |||
| 2.1 M | 8.6 | | | 2.1 m brace | |||
| 2.7 M | 11.5 | | | 2.7 m brace | |||
| 3.2 M | 13.4 | | | 3.2 m brace | |||
| 3.6 M | 14.7 | | | 3.6 m brace |
Kwikstage Galvanized Steel planks
Manufactured from Pre Galvanised steel sheet pressed to a hollow shape 60 mm High x 230mm wide. Steel Planks are strong, durable and light in weight. They fit neatly sit on the ÒTÓ section of 2 transoms. giving a non slip surface and a working deck.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 5.2 | | 0.7 m galvanized steel Plank | ||||
| 1.2 M | 8.1 | | 1.2 m galvanized steel Plank | ||||
| 1.8 M | 11.6 | | 1.8 m galvanized steel Plank | ||||
| 2.4 M | 15 | | 2.4 m galvanized steel Plank |
Kwikstage Galvanized Steel Infills
The steel in-fill spans between the transoms giving a non slip surface with a is hot dip galvanized finish.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 4.05 | | 1.2 m galvanized steel infill | ||||
| 1.8 M | 6 | | 1.8 m galvanized steel infill | ||||
| 2.4 M | 7.5 | | 2.4 m galvanized steel infill |
Kwikstage Hopup bracket – Straight arm
Board Stage Brackets / hopups fit into the ÒVÓ pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 2 BOARD WIDE | 6.25 | | | 2 board hopup straight arm | |||
| 3 BOARD WIDE | 11.25 | | | 3 board hopup straight arm |

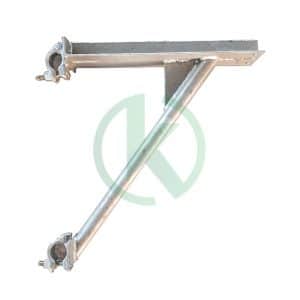

Kwikstage Hopup bracket – Couplers
custom made with couplers for more flexibility
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 2 BOARD WIDE | 8.1 | | | 2 Board Hopup with Couplers | |||
| 3 BOARD WIDE | 12 | | | 3 Board Hopup with Couplers |
Kwikstage Hopup – Spigot
Hopups with spigots give more flexibility by fitting standards in the spigot and run handrails on the v press
| Size | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|
| 3 BOARD WIDE | | | 3 Board Hopup with Spigot | |||
| 2 BOARD WIDE | | | 2 Board Hopup with Spigot |
Toe board bracket
Toe baord brackets also known as toe board clips are Clamped to the standard with a captive wedge to hold the batten toe board vertically in place.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 0.85 | | | Toe board bracket | |||
| default variation | 0.85 | | | Toe board bracket |
Double C Clips
Used to Join Kwikstage scaffolding Standards Back to Back for more stability and steenght to the scaffold structure
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 1.5 | | | Double C Coupler | |||
| default variation | 1.5 | | | Double C Coupler |
Showing 1–12 of 49 results
